Fly Ash Brick Making Machine

• Automatic
• Yes

• Capacity
• 1000 Bricks/Hour

• Color
• Industrial Blue & Grey

• Computerized
• Yes

• Dimension (L*W*H)
• 6500 x 3000 x 2800 mm

• Feature
• Other, Energy saving, Robust design

• General Use
• Making fly ash bricks

• Machine Power
• 32 HP

• Material
• Other, Mild Steel

• Maximum Height
• 230 mm

• Maximum Pressure
• 120 Ton

• Method
• Other, Autoclave Aerated

• Minimum Height
• 75 mm

• Number of Bricks
• 1000 Bricks Per Hour

• PLC Control
• Other, Available

• Pallet Size
• 600 x 300 mm

• Product Type
• Fly Ash Brick Plant

• Type
• Other, Fully Automatic

• Vibration Frequency
• High Frequency

• Vibration Type
• Other, Mechanical Vibration

• Voltage
• 415 V

• Weight (kg)
• 4200 kg

• Automatic
• Yes

• Capacity
• 1500-1700 Bricks/Hour

• Color
• Blue & Yellow

• Computerized
• No

• Dimension (L*W*H)
• 1840 x 1470 x 2350 mm

• Feature
• Other, High Efficiency, Low Maintenance

• General Use
• Brick Making

• Machine Power
• 10 HP

• Material
• Other, Mild Steel

• Maximum Height
• 200 mm

• Maximum Pressure
• 70-100 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 60 mm

• Number of Bricks
• 8 Bricks/Stroke

• PLC Control
• Yes

• Pallet Size
• 550 x 650 mm

• Product Type
• Hydraulic Brick Making Machine

• Type
• Other, Automatic

• Vibration Frequency
• 2800-3200 r/min

• Vibration Type
• Platform Vibration

• Voltage
• 380 V

• Weight (kg)
• 2500 kg

• Automatic
• Yes

• Capacity
• 1500-2000 Bricks Per Hour

• Color
• Blue & Yellow

• Computerized
• No

• Dimension (L*W*H)
• 2200 x 1500 x 2200 mm

• Feature
• Other, High Durability, Less Power Consumption, Easy to Operate

• General Use
• Fly Ash Brick Making

• Machine Power
• 11.5 kW

• Material
• Other, Mild Steel

• Maximum Height
• 200 mm

• Maximum Pressure
• 70-90 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 70 mm

• Number of Bricks
• 8 (per cycle)

• PLC Control
• Yes

• Pallet Size
• 565 x 550 x 20 mm

• Product Type
• Fly Ash Brick Machine

• Type
• Other, Fully Automatic

• Vibration Frequency
• 2800 - 3200 RPM

• Vibration Type
• Other, Table Vibration

• Voltage
• 380-440 V

• Weight (kg)
• 2200 kg

• Automatic
• Yes

• Capacity
• 2500-3000 bricks per hour

• General Use
• Fly Ash Brick Production

• Method
• Hydraulic Pressure

• Product Type
• Fully Automatic Fly Ash Brick Making Machine

• Type
• Other, Solid

• Weight (kg)
• 12000

• Automatic
• Yes

• Capacity
• 1200 - 2000 Bricks/Hour

• Color
• Blue & Yellow

• Computerized
• No

• Dimension (L*W*H)
• 2400 x 1500 x 2200 mm

• Feature
• Other, Easy to operate, High Efficiency, Durable

• General Use
• Industrial, Construction

• Machine Power
• 12.5 HP

• Material
• Other, Mild Steel

• Maximum Height
• 230 mm

• Maximum Pressure
• 70 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 75 mm

• Number of Bricks
• 8 Bricks/Stroke

• PLC Control
• Yes

• Pallet Size
• 550 x 600 mm

• Product Type
• Fly Ash Brick Making Machine

• Type
• Other, Hydraulic

• Vibration Frequency
• 3600 Rounds/Min

• Vibration Type
• Other, Table Vibration

• Voltage
• 440 Volt (v)

• Weight (kg)
• 2000 Kilograms (kg)

• Automatic
• Yes

• Capacity
• 2000-2500 Bricks per Hour

• Color
• Blue / Yellow (as per availability)

• Computerized
• No

• Dimension (L*W*H)
• 3000 x 1500 x 2200 mm

• Feature
• Other, Heavy Duty, High Efficiency, Low Maintenance

• General Use
• Industrial Fly Ash Brick Production

• Machine Power
• 22 HP

• Material
• Other, Mild Steel Body

• Maximum Height
• 230 mm

• Maximum Pressure
• 120 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 70 mm

• Number of Bricks
• 8 to 10 Bricks per Stroke

• PLC Control
• Other, Optional

• Pallet Size
• 600 x 250 mm

• Product Type
• Fly Ash Bricks Making Machine

• Type
• Other, Automatic Hydraulic Press

• Vibration Frequency
• 3500 RPM

• Vibration Type
• Other, Metal To Metal

• Voltage
• 415 V

• Weight (kg)
• 2800 kg

• Automatic
• Yes

• Capacity
• 3500-4000 Bricks/Hour

• Color
• Blue & Yellow

• Computerized
• No

• Dimension (L*W*H)
• 2300 x 1800 x 2400 mm

• Feature
• Other, High Productivity, Low Maintenance, Robust Structure

• General Use
• Brick Manufacturing

• Machine Power
• 30 HP

• Material
• Other, Mild Steel

• Maximum Height
• 230 mm

• Maximum Pressure
• 120 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 75 mm

• Number of Bricks
• 8 Bricks/Cycle

• PLC Control
• Yes

• Pallet Size
• 550 x 500 x 18 mm

• Product Type
• Automatic Fly Ash Brick Making Machine

• Type
• Other, Automatic

• Vibration Frequency
• 4400 R/Min

• Vibration Type
• Other, Table Vibration

• Voltage
• 415 Volt

• Weight (kg)
• 3820 kg

• Automatic
• Yes

• Capacity
• 1200-1500 Bricks/Hour

• Color
• Blue & Yellow

• Computerized
• No

• Dimension (L*W*H)
• 1900 x 1250 x 1500 mm

• Feature
• Other, Heavy Duty, Low Maintenance, Energy Efficient

• General Use
• Manufacturing Fly Ash Bricks

• Machine Power
• 7.5 HP

• Material
• Other, Mild Steel

• Maximum Height
• 90 mm

• Maximum Pressure
• 70-100 Ton

• Method
• Other, Hydraulic Pressure and Vibration

• Minimum Height
• 70 mm

• Number of Bricks
• 4 Bricks Per Stroke

• PLC Control
• Other, Optional

• Pallet Size
• 650 x 550 mm

• Product Type
• Fly Ash Bricks Making Machine

• Type
• Other, Automatic Block Making Machine

• Vibration Frequency
• 5000-6000 Rpm

• Vibration Type

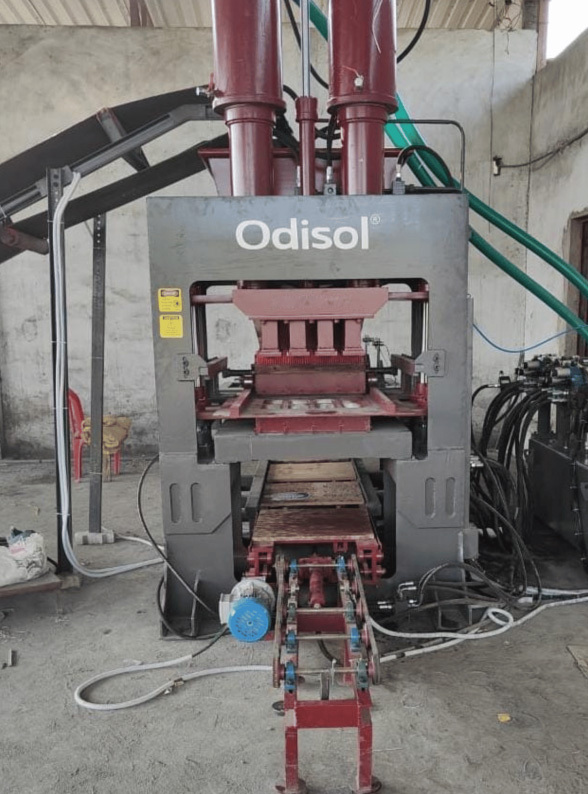

• Other, Bottom Vibration

• Voltage
• 380-415 V

• Weight (kg)
• 1800-2200 kg

• Automatic
• Yes

• Capacity
• 1000-1500 bricks per hour

• Color
• Blue & Yellow

• Computerized
• Yes

• Dimension (L*W*H)
• 3000 x 2200 x 3000 mm

• Feature
• Other, High Efficiency, Low Noise

• General Use
• Fly Ash Brick Manufacturing

• Machine Power
• 26 kW

• Material
• Other, Mild Steel

• Maximum Height
• 200 mm

• Maximum Pressure
• 150 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 70 mm

• Number of Bricks
• 8 Per Stroke

• PLC Control
• Yes

• Pallet Size
• 600 x 400 mm

• Product Type
• Fully Automatic Brick Making Machine

• Type
• Other, Rotary Table Three Stationed

• Vibration Frequency
• 4500-5000 Hz

• Vibration Type
• Other, Platform Vibrator

• Voltage
• 380-440 V

• Weight (kg)
• 6000 kg

• Automatic
• Yes

• Capacity
• 25000 Bricks per 8 Hours

• Color
• Blue & Yellow

• Computerized
• Yes

• Dimension (L*W*H)
• 3500 x 1500 x 2100 mm

• Feature
• Other, High Efficiency, Low Maintenance, Durable Structure

• General Use
• Manufacturing Fly Ash Bricks

• Machine Power
• 28 HP

• Material
• Other, Mild Steel

• Maximum Height
• 230 mm

• Maximum Pressure
• 200 Ton

• Method
• Hydraulic Pressure

• Minimum Height
• 75 mm

• Number of Bricks
• 10 Bricks per Stroke

• PLC Control
• Yes

• Pallet Size
• 550 x 650 mm

• Product Type
• Automatic Brick Making Machine

• Type
• Other, Fully Automatic

• Vibration Frequency
• 50 Hz

• Vibration Type
• Other, Table Vibration

• Voltage
• 380 V

• Weight (kg)
• 3200 kg

• Automatic
• Yes

• Capacity
• 1000-1500 bricks per hour

• Color
• Blue/White

• Computerized
• No

• Dimension (L*W*H)
• ~3500 x 2500 x 2300 mm

• Feature
• Other, High efficiency, robust construction

• General Use
• Fly ash brick making

• Machine Power
• Approx. 15-22 kW

• Material
• Other, Mild Steel

• Maximum Height
• 230 mm

• Maximum Pressure
• Standard hydraulic pressure

• Method
• Hydraulic Pressure

• Minimum Height
• 70 mm

• Number of Bricks
• 8-12 per cycle

• PLC Control
• Other, Optional

• Pallet Size
• Approx. 900 x 550 mm

• Product Type

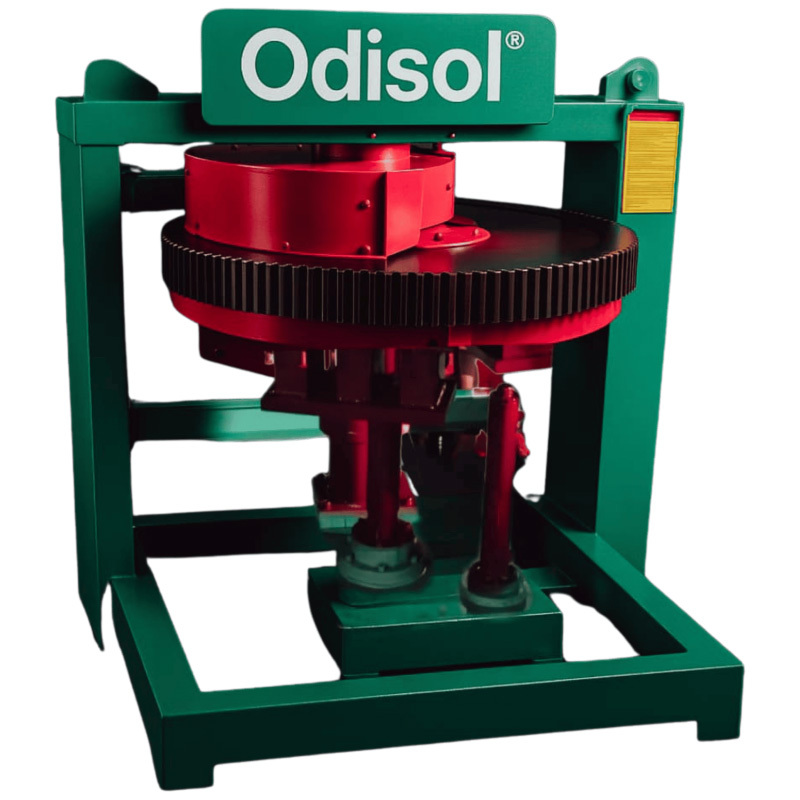

• Rotary Fly Ash Brick Machine

• Type
• Other, Automatic

• Vibration Type
• Other, Rotary Type

• Voltage
• 415 V

• Weight (kg)
• 6000 kg
